9/13/17 – 5th Wheel Tahoe, 23’

These clients came to us wanting to have a small amount of solar power installed with the potential to install more at a later date.  We installed one SF180 solar panel with a 50A charge controller and wired the rig with 4-gauge cable from the battery bank to the roof.  The 50A charge controller is powerful enough for them to install three more SF180 panels.  By installing the oversized charge controller now, we eliminated the need for them to install a new charge controller (saving them some money) when they expand in the future.  The roof C-Box was also installed with expansion in mind.

Equipment Added: 1x SF180 Solar Panel Kit 1x SunRunner Victron MPPT 50A Charge Controller Core 1x Roof C-Box 1x BMV-702 Battery Monitor 1x Bluetooth Smart Dongle 2x 300Ah AGM 6CTs 1x PD4655 Converter Charger Upgrade

Equipment Added:
1x SF180 Solar Panel Kit
1x SunRunner Victron MPPT 50A Charge Controller Core
1x Roof C-Box
1x BMV-702 Battery Monitor
1x Bluetooth Smart Dongle
2x 300Ah AGM 6CTs
1x PD4655 Converter Charger Upgrade

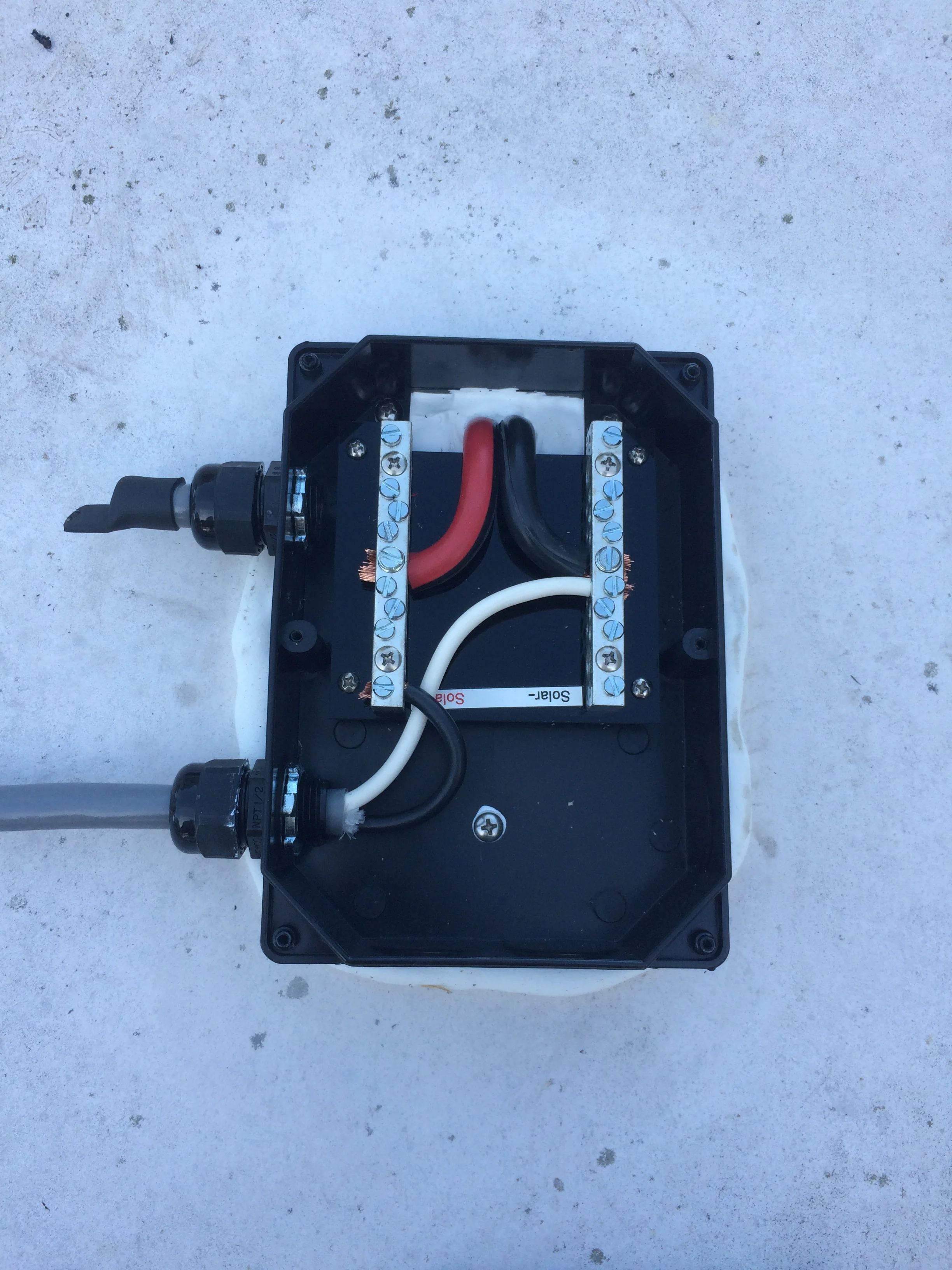

Combiner Box

Combiner Box

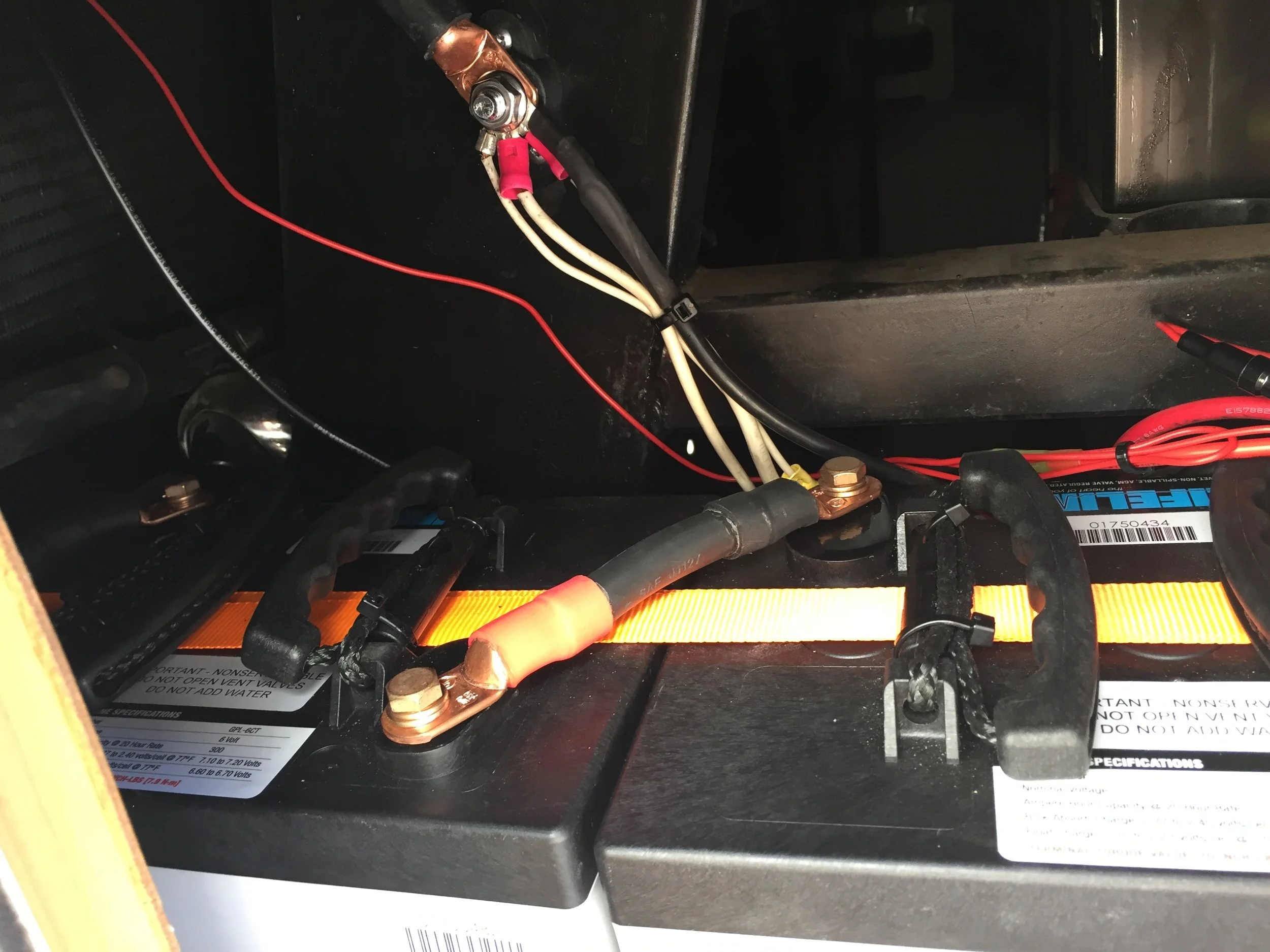

Battery Bank

Battery Bank

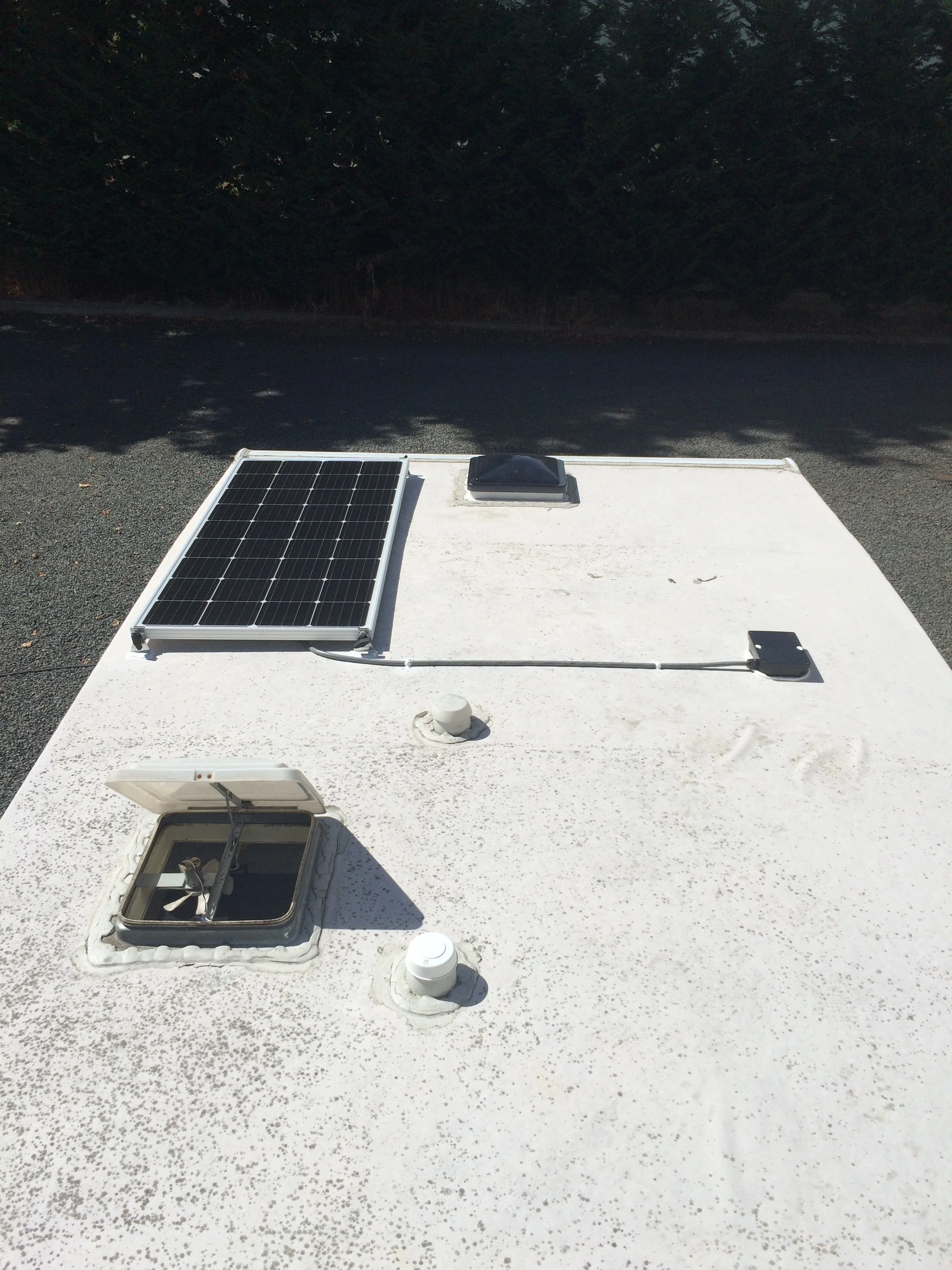

180W Solar Panel

180W Solar Panel
