Pleasure Way

9/15/17 – 2008 Pleasure-Way, 21’

This client wanted to be able to run his microwave, and he wanted all of his AC outlets to be functional when dry camping.  The existing battery bank was not large enough to power the loads he was planning on running.  It’s recommended that when running a heavy AC load (like a microwave) you want to have at least a 300Ah to 400Ah battery bank.  We doubled the size of his battery bank (from 220Ah to 440Ah), installed a solar charging system and an inverter, which should give him the power he needs to be comfortable while dry camping.


Equipment Added:  3x SP100 Solar Panel Kits 1x Roof Combiner Box 1x SunRunner Signature MPPT 25A Charge Controller Core 1x Samlex 200W Inverter, Remote, and Transfer Switch 2x AGM 220Ah 4CTs

Equipment Added:
3x SP100 Solar Panel Kits
1x Roof Combiner Box
1x SunRunner Signature MPPT 25A Charge Controller Core
1x Samlex 200W Inverter, Remote, and Transfer Switch
2x AGM 220Ah 4CTs

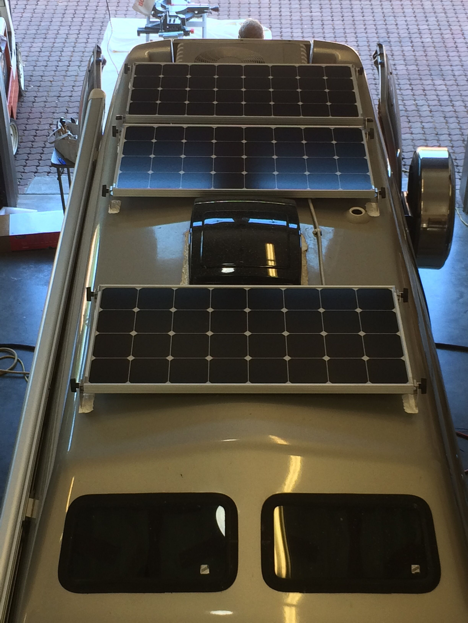

300W Solar Array

300W Solar Array

Blue Sky Solar Charge Controller

Blue Sky Solar Charge Controller

2/6/2017 - 2013 Pleasure-Way, Mercedes Chassis, 22'

We installed a 220Ah AGM battery bank and a 300W solar charging system on this client’s van.  In typical weather conditions, the solar panels will replenish about 75Ah per day (70% of the battery bank’s usable capacity).  Solar, combined with alternator charging will keep these batteries topped off.

Equipment Added:  3x SP100 Solar Panel Kits 1x Roof Mount Combiner Box 1x SunRunner Signature MPPT 25A System Core 2x 12V AGM 4CT 220Ah Batteries

Equipment Added:
3x SP100 Solar Panel Kits
1x Roof Mount Combiner Box
1x SunRunner Signature MPPT 25A System Core
2x 12V AGM 4CT 220Ah Batteries

Charge controller and shunt

Charge controller and shunt

Combiner Box

Combiner Box

AGM Batteries

AGM Batteries

7/6/2016 – Pleasure Way Sprinter, 24'

This relatively simple installation involved 200W of solar through a PWM charge controller onto two AGM batteries.  We added a 150W inverter for device charging along with a 12V/USB outlet.

Equipment Added:  2x  SP100 100W Solar Panels  1x  SunRunner Gold PWM 30A System Core  2x  6V 220Ah AGM batteries  1x Samlex PST-15S-12 inverter 1x 12V/USB Outlet

Equipment Added:
2x SP100 100W Solar Panels
1x SunRunner Gold PWM 30A System Core
2x 6V 220Ah AGM batteries
1x Samlex PST-15S-12 inverter
1x 12V/USB Outlet



Blue Sky SC30 PWM charge controller

Blue Sky SC30 PWM charge controller

AGM Battery Bank

AGM Battery Bank
