8/29/2016 - 2013 Newmar Ventana 360HP, 34'

This customer purchased a 3024DiL controller and 2x SF160 solar panels from us and did most of the installation himself. We finished the job by adding a temp sense to his controller and a new bank of AGM batteries.

Equipment Added:  4x 6V 4CT 220Ah AGM Batteries 1X Blue Sky Temp Sense 1x IPN Pro Remote Shunt Kit (minus the shunt)

Equipment Added:
4x 6V 4CT 220Ah AGM Batteries
1X Blue Sky Temp Sense
1x IPN Pro Remote Shunt Kit (minus the shunt)

AGM Batteries

AGM Batteries

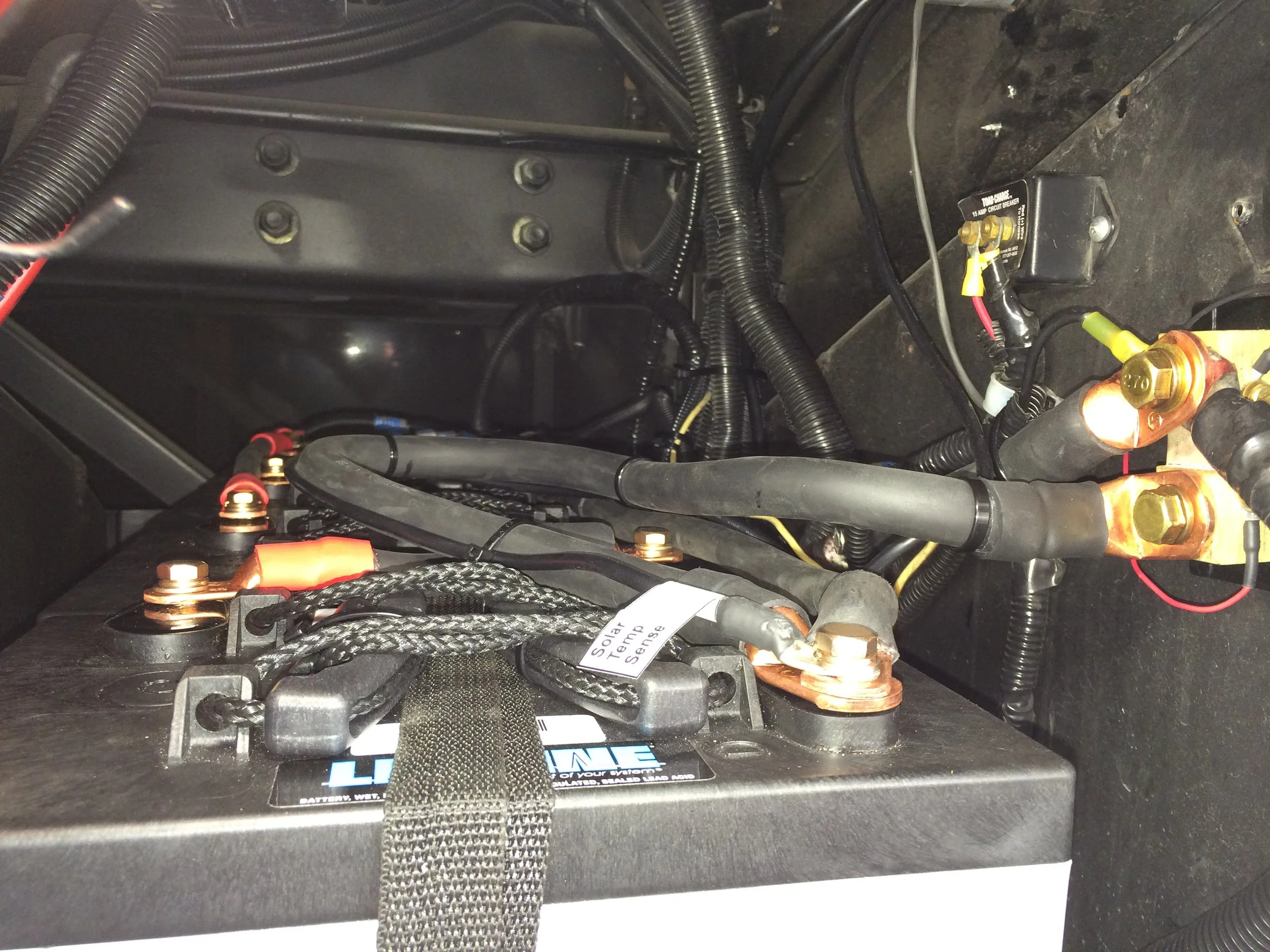

Customer installed shunt

Customer installed shunt

Blue Sky Charge Controller

Blue Sky Charge Controller

6/14/2016 - 2016 Newmar Ventana, 34'

For the ambitious do-it-yourselfers out there who are overwhelmed by doing a full solar installation, consider having AM Solar do a partial install. In this case, we’ve secured the panels and routed the solar cables.  The owner intends to tackle the remainder of the project, which will include a Victron charge controller and lithium battery system.  This saves the customer time and money, while giving them a head start on their solar project and control over the installation process.

960 Watts of  SF160 panels  connected in three parallel groups of two in series, Utilizing two roof mount combiner boxes

960 Watts of SF160 panels connected in three parallel groups of two in series,
Utilizing two roof mount combiner boxes
