5/16/2017 - 2016 Newmar Dutchstar, 44'

This client’s RV was pre-wired by the manufacturer with 6-gauge cables, and an inverter.  We installed 960 watts of solar power, which is more than we would recommend for 6-gauge cable, so we had to take additional steps in order to make the system as efficient as possible.  With these under-sized cables, voltage would have been lost between the solar panels and the charge controller.  We installed the solar panels using series/parallel connections to increase the voltage, reducing the amount of voltage drop to less than 1%, which resulted in increased system performance.  This client will be able to run their residential refrigerator without using a generator or shore power.

Equipment added: 6x SF160 Solar Panel Kits 1x Roof C-Box 1x SunRunner Victron MPPT 85A System Core 1x BMV-702 Shunt Controlled Battery Monitor

Equipment added:
6x SF160 Solar Panel Kits
1x Roof C-Box
1x SunRunner Victron MPPT 85A System Core
1x BMV-702 Shunt Controlled Battery Monitor

Victron MPP controller and BMV-702 battery monitor

Victron MPP controller and BMV-702 battery monitor

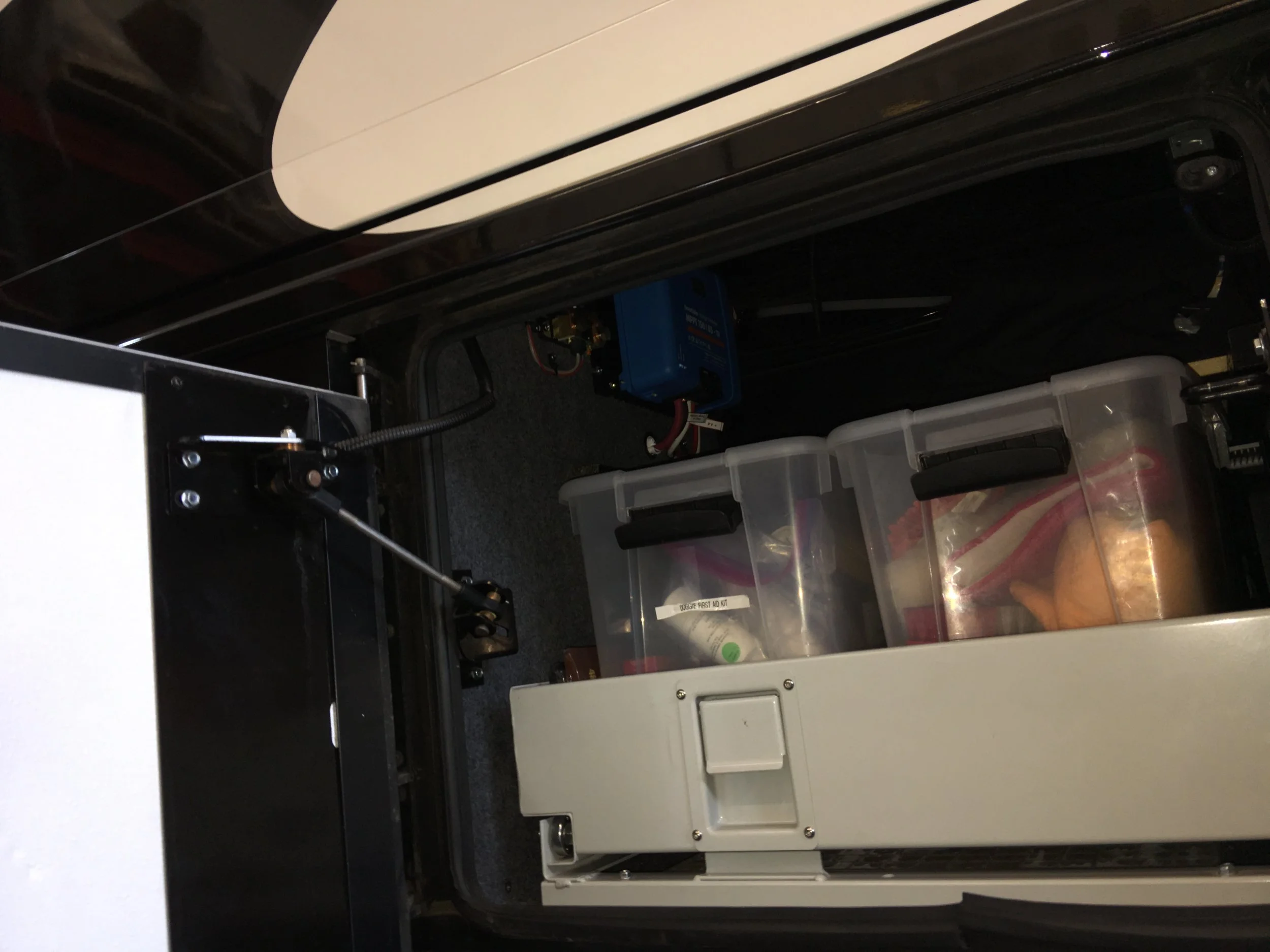

Charge Controller Placement

Charge Controller Placement

Original Battery Bank

Original Battery Bank
